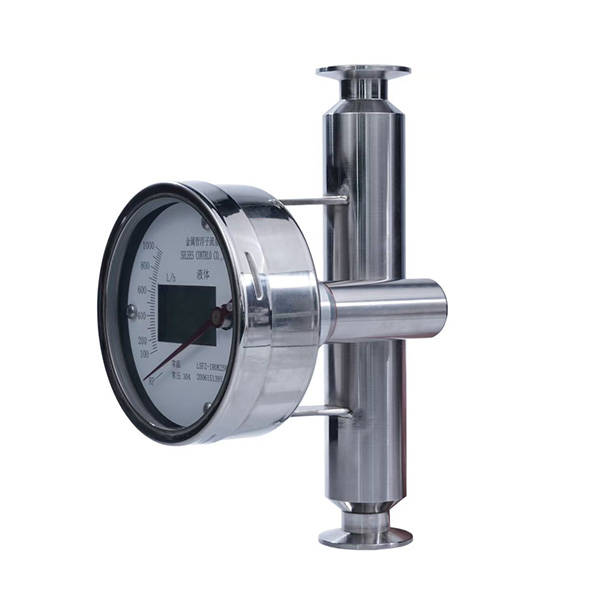

The metal tube rotameter (also known as the variable area flowmeter) is a flow instrument based on the variable area measurement principle, mainly used for continuously measuring the instantaneous flow of liquids, gases, or steam. Its core feature is the use of a metal tube body, making it suitable for harsh working conditions such as high – temperature, high – pressure, and corrosive media.
Choosing a suitable metal tube rotameter requires consideration of the measuring medium, minimum and maximum flow rates, operating pressure, temperature, process connection, installation orientation, and required output signals.
SHLEES can review your application requirements and help identify a suitable flow measurement solution. Provide your fluid properties, operating conditions, pipeline dimensions, and signal requirements to request technical information and a quotation.
Working Principle of Metal Tube Rotameter
1. Structural Components
- Conical metal tube: Designed with an inverted conical interior.
- Float: An internally – placed magnetic float that moves up and down with changes in flow rate.
- Indicator: Converts the position of the float into a flow reading through a magnetic coupling system (can be equipped with a remote – transmission signal output).
2. Working Process
When the fluid passes through the conical tube from bottom to top, the float suspends under the balance of fluid dynamic force and gravity. When the flow rate increases, the float rises, and the annular flow area increases until a new equilibrium position is reached. The position of the float has a linear relationship with the flow rate.
When Should You Choose a Metal Tube Rotameter?
A metal tube rotameter is a practical option when an industrial process requires local flow indication, a robust metal measuring structure, and optional remote monitoring. It can be considered for compatible liquid or gas applications where the operating conditions fall within the instrument’s rated limits.
● Local flow monitoring: Choose a local-indication configuration when operators need to read flow directly at the installation point during routine inspections.
● Industrial operating environments: Consider a metal tube design when the installation requires a metal measuring structure. Verify the pressure rating, temperature limits, and wetted materials for the actual process.
● Remote signal transmission: Select a transmitter-equipped model when flow readings must be sent to a PLC or control system. Confirm the available output signal and electrical requirements.
● Process and equipment monitoring: Metal tube rotameters can be suitable for compatible fluids in auxiliary pipelines, chemical dosing systems, utility lines, and industrial equipment.
● Compact installation requirements: Evaluate the instrument dimensions, connection arrangement, mounting orientation, and maintenance clearance when space is limited.
Before selecting a metal tube rotameter, confirm the medium, minimum and maximum flow rates, operating pressure, temperature, material compatibility, installation orientation, and required output functions. If direct mass flow measurement is essential, a Coriolis mass flow meter may be more appropriate.
Metal Tube Rotameter Types and Configurations
Metal tube rotameters are available in different configurations to accommodate varying process conditions, installation arrangements, and monitoring requirements.
Local Indication Metal Tube Rotameter
A local indication instrument displays the measured flow rate at the installation point. This configuration is suitable for applications where operators need to observe flow directly during routine process inspections.
When selecting a local indication model, confirm the required flow scale, measurement range, fluid properties, reading direction, and installation orientation.
Metal Tube Rotameter with Remote Transmission
A transmitter-equipped metal tube rotameter can send flow information to an external monitoring or control system, depending on the selected configuration.
This arrangement is useful when flow readings need to be monitored from a control room, recorded by a PLC, or integrated into an automated process. Confirm the available output signal, power supply, wiring requirements, and communication compatibility before ordering.
Metal Tube Rotameter with Alarm Output
For processes requiring flow limit monitoring, selected configurations may support upper or lower limit alarm outputs.
The available alarm functions, switching characteristics, and electrical interfaces vary by instrument. Specify the required alarm thresholds and control-system interface when requesting a quotation.
Compact Metal Tube Rotameter
Compact designs can help accommodate restricted installation spaces in machinery, equipment skids, and industrial process lines.
Check the overall instrument dimensions, connection orientation, maintenance clearance, and accessibility of the display before finalizing the installation layout.
Featured Applications of Metal Tube Rotameters
Oil & Gas Industry:
Metal tube rotameters are widely used in oil and gas refineries to monitor the flow of crude oil, natural gas, and other hydrocarbons. Their ability to handle high pressures makes them ideal for pipelines, wellheads, and other demanding environments.
Chemical Processing:
Resistant to corrosion and capable of withstanding harsh conditions, metal tube rotameters are essential for monitoring the flow of chemicals and process liquids in chemical plants.
Wastewater Treatment:
In wastewater treatment facilities, these rotameters accurately measure the flow of water and chemicals for processes such as disinfection, pH control, and chemical dosing.
Pharmaceutical Industry:
Used in controlled production environments, metal tube rotameters help monitor the flow of solvents, water, and other critical process fluids, ensuring precision and safety in pharmaceutical manufacturing.
Food & Beverage Industry:
Sanitary-grade metal tube rotameters are applied in food and beverage production lines to measure the flow of ingredients, additives, and other process fluids while maintaining hygiene standards.
Benefits of Using Metal Tube Rotameters
- Durable and Long-Lasting: Built to withstand harsh industrial conditions.
- Chemical Resistant: Handles corrosive fluids safely and reliably.
- Pressure & Temperature Resilient: Performs accurately under high pressure and extreme temperatures.
- Reliable with Opaque Fluids: Provides accurate measurements even when fluids are not transparent.
- Explosion-Proof Options: Available models designed for hazardous environments.
- Clear LCD Display: Simultaneously shows instantaneous flow, cumulative flow, and percentage of the light column.
- Remote Transmission & Alarms: Easily set upper and lower limit alarms for flexible monitoring.
- HART Protocol Compatible: Works seamlessly with standard HART software and handheld operators.
- Versatile Installation: Multiple mounting options adapt to different working conditions.
- High Accuracy & Repeatability: One-time roll-formed sensors ensure precise and consistent measurements.
Why Choose SHLEES as Your Metal Tube Rotameter Supplier
As a leading rotameter manufacturer, SHLEES stands out by offering a complete, integrated approach to metal tube rotameters—from R&D and manufacturing to quality control and after-sales service.
Integrated R&D & Manufacturing
Our in-house research and production capabilities ensure innovative designs, precise engineering, and consistent product quality, tailored to the unique needs of industries such as chemical, oil & gas, wastewater, pharmaceuticals, and food & beverage.
Strict Quality Control
Each rotameter undergoes rigorous testing to guarantee accuracy, durability, and reliability, even in demanding or harsh environments.
Comprehensive After-Sales Service
SHLEES provides dedicated support from installation guidance to maintenance, ensuring your flow measurement solutions operate smoothly throughout their lifecycle.
Choose SHLEES as your Metal Tube Rotameter Supplier for high-quality metal tube rotameters backed by R&D expertise, strict quality assurance, and attentive service.
